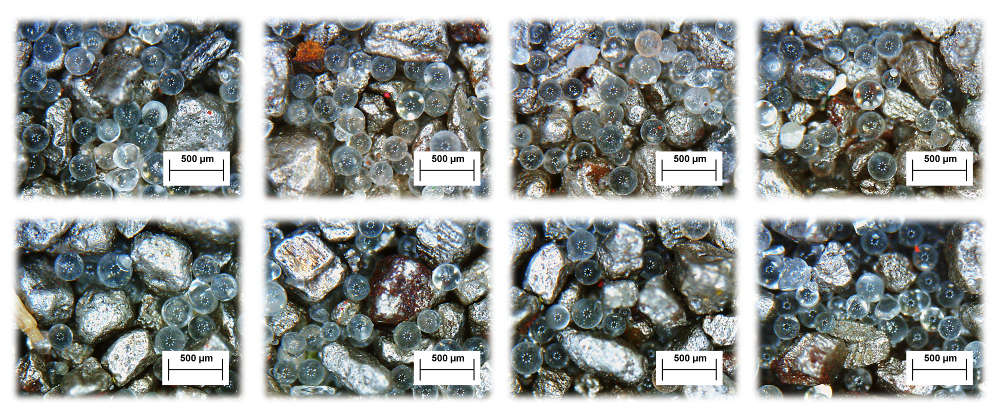

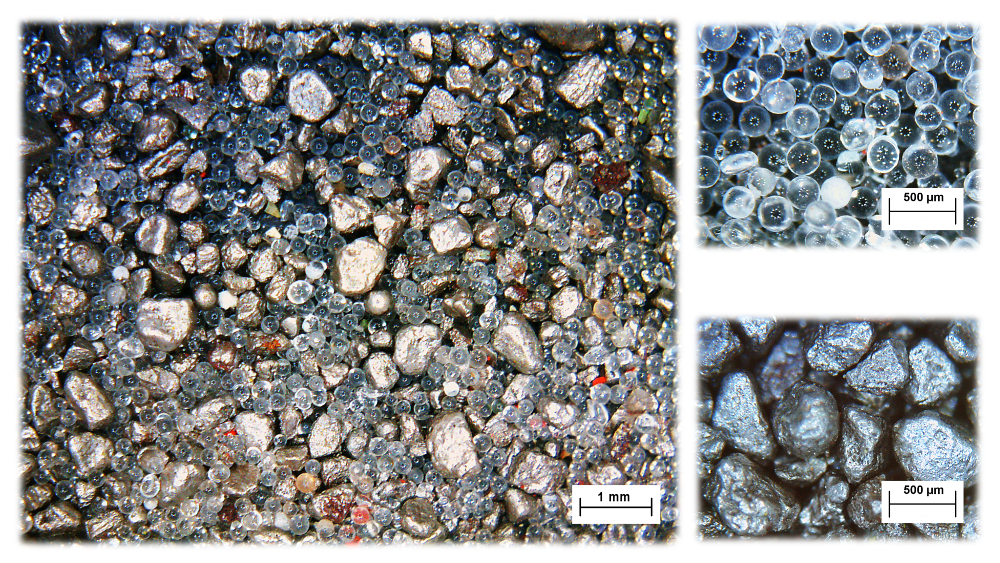

GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50)

ANGLE OF INTERNAL FRICTION

MATERIAL/NUMBER OF MEASUREMENT	PHIE (°)	PHILIN (°)	PHISF (°)
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 1	29,4	29,4	27,5
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 2	28,7	28,7	27,1
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 3	28,9	28,9	27,1
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 4	28,7	28,7	26,8
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 5	29,0	29,0	27,2
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 6	28,8	28,8	26,9
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 7	28,1	28,1	26,2
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 8	28,6	28,6	26,6
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 9	29,1	29,1	27,2
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 10	29,0	29,0	27,0
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 11	28,6	28,6	26,8
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 12	29,5	29,5	27,6
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 13	28,6	28,6	26,8
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 14	29,2	29,2	27,4
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 15	28,8	28,8	27,0
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 16	29,1	29,1	27,2
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 17	29,1	29,1	27,2
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 18	29,1	29,1	27,4
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 19	28,6	28,6	26,8
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 20	28,6	28,6	26,9
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 21	28,5	28,5	27,2
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 22	28,6	28,6	26,8
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 23	29,1	29,1	27,4
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 24	28,5	28,5	26,9
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 25	29,2	29,2	27,4
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 26	29,1	29,1	27,3
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 27	29,1	29,1	27,0
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 28	29,2	29,2	27,4
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 29	28,8	28,8	27,1
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 30	29,0	29,0	27,3

	PHIE (°)	PHILIN (°)	PHISF (°)
Minimum measured value	28,1	28,1	26,2
Maximum measured value	29,5	29,5	27,6
Standard deviation of measurement	0,3	0,3	0,3
Arithmetical mean diameter	28,9	28,9	27,1
Mean deviation	0,3	0,3	0,2

DISTIBUTION SIZE OF THE PARTICLES

MATERIAL/NUMBER OF MEASUREMENT	Q3 10% – (µm)	Q3 50% – (µm)	Q3 90% – (µm)
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 1	199	253	610
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 2	198	250	531
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 3	195	254	515
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 4	167	255	538
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 5	113	252	508
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 6	167	252	491
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 7	160	253	474
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 8	186	255	521
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 9	166	255	493
GLASS MICROBEADS 200-300/STEEL GRIT GH50 50%/(50-50) 10	174	259	706

	Q3 10% – (µm)	Q3 50% – (µm)	Q3 90% – (µm)
Minimum measured value	113	250	474
Maximum measured value	199	259	706
Standard deviation of measurement	24,2	2,3	66,0
Arithmetical mean diameter	172,5	253,8	538,7
Mean deviation	17,9	1,8	47,7
